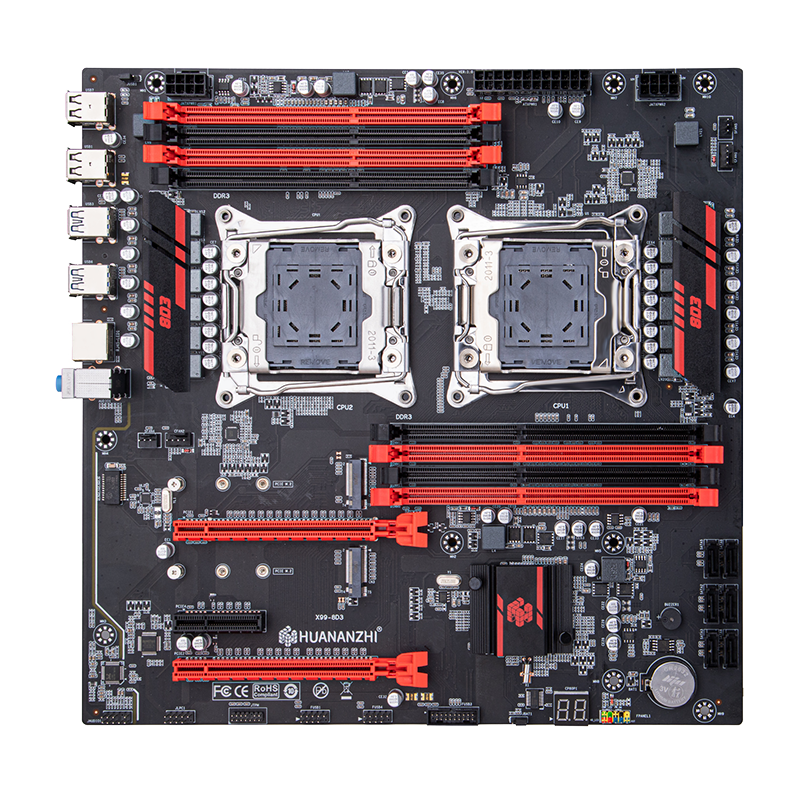

Chipset: Intel C612 Series
CPU Pin: Supports Intel LGA2011-3 platform processors (Supports Intel LGA 2011-3 pin processors (Supports Xeon E5-2629 v3/ E5-2649 v3/ E5-2669 v3/ E5-2673 v3/ E5-2676 v3/ E5-2678v3/ E5-2696 v3/ E5-2666 v3/ E5-2686v4/ E5-2696v4))
Memory Slots: 8 DDR3 memory slots, supports server memory
Memory Standard: Supports DDR3 1866/ 1600/ 1333MHz, maximum support 256GB (preferred orange/red slots), single-CPU dual-channel.
Storage Interfaces: 6 SATA3.0 6Gb/s Hard Drive Interfaces
Expansion Slots: 2 PCI Express 3.0 x16 slots, 1 PCI Express 3.0 x4 slot
Expansion Interfaces: 2 M.2 2280 NVMe PCIe X4 3.0 32Gb/s
Onboard Audio Card: 5.1 Channel
Onboard Network Card: Gigabit Ethernet
Power Interface: 24PIN + 8PIN + 8PIN
Fan Sponsors: 2 CPU_FAN headers, 2 SYS_FAN headers
Power Phases: 6+6 phases
PCB Layers: 6 layers
Motherboard Size: 295*290MM E-ATX form factor
Rear Panel Interfaces: 4 USB 2.0 ports, 4 USB 3.0 ports, 1 Ethernet port, 1 3.0... Audio Interfaces
Front Panel Interface: 2 USB 2.0 headers, 1 USB 3.0 header, 1 front audio header, 1 TPM header, 1 motherboard buzzer, 1 motherboard diagnostic card, 1 CMOS jumper, 1 power/reset header
