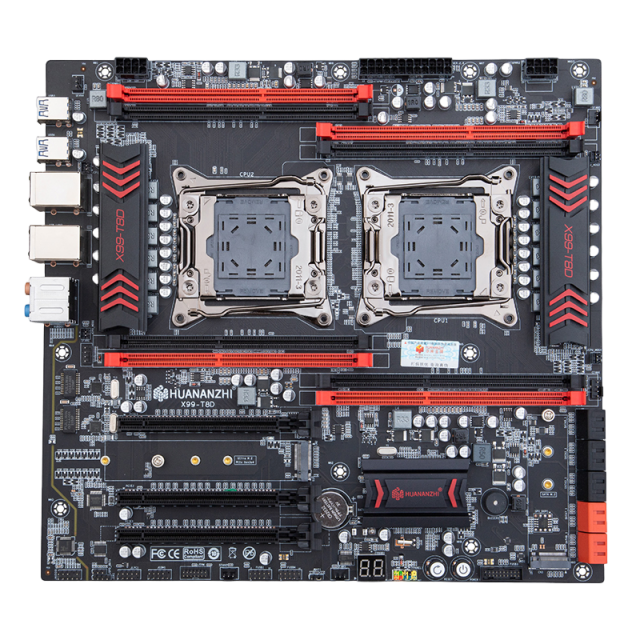

Chipset: Intel C610 series
CPU Pin: Supports Intel LGA 2011-3 pin processors (supports Xeon E5-2629 v3/ E5-2649 v3/ E5-2669 v3/ E5-2673 v3/ E5-2676 v3/ E5-2678 v3/ E5-2696 v3/ E5-2696636 v3/ E5-2686v4/ E5-2696v4)
Memory Slots: 8 DDR3 memory slots, supporting server memory
Memory Standard: Supports quad-channel DDR3 1866/1600/1333MHz memory, maximum support 256GB
Storage Interfaces: 6 SATA3.0 3Gbps hard drive interfaces, 4 SATA3.0 6Gb/s hard drive interfaces
Expansion Slots: 3 PCI Express slots 3.0 x16 slots
Expansion interfaces: 1 M.2 22110 NVMe PCIe x4 3.0 32Gbps, 1 M.2 2280 NVMe PCIe x4 3.0 @ NGFF/SSATA 3.0 6Gbps (one SSATA signal will be used during use)
Onboard audio card: 7.1 channel audio card
Onboard network card: Dual Gigabit Ethernet cards
Power interface: 24PIN + 8PIN + 8PIN
Fan headers: 2 CPU_FAN headers, 4 SYS_FAN headers
Power phases: 6+6 phase power supply
PCB layers: 12 layers
Motherboard dimensions: 290*310MM E-ATX form factor
Rear panel I/O: 4 USB 2.0 ports, 4 USB 3.0 ports, 2 Ethernet ports, 1 6-pin audio jack
Front panel I/O: 2 USB 2.0 headers, 1 USB 3.0 header, 1 front audio header, 1 COM header, 1 motherboard buzzer, 1 motherboard diagnostic card, 1 power/reset button
