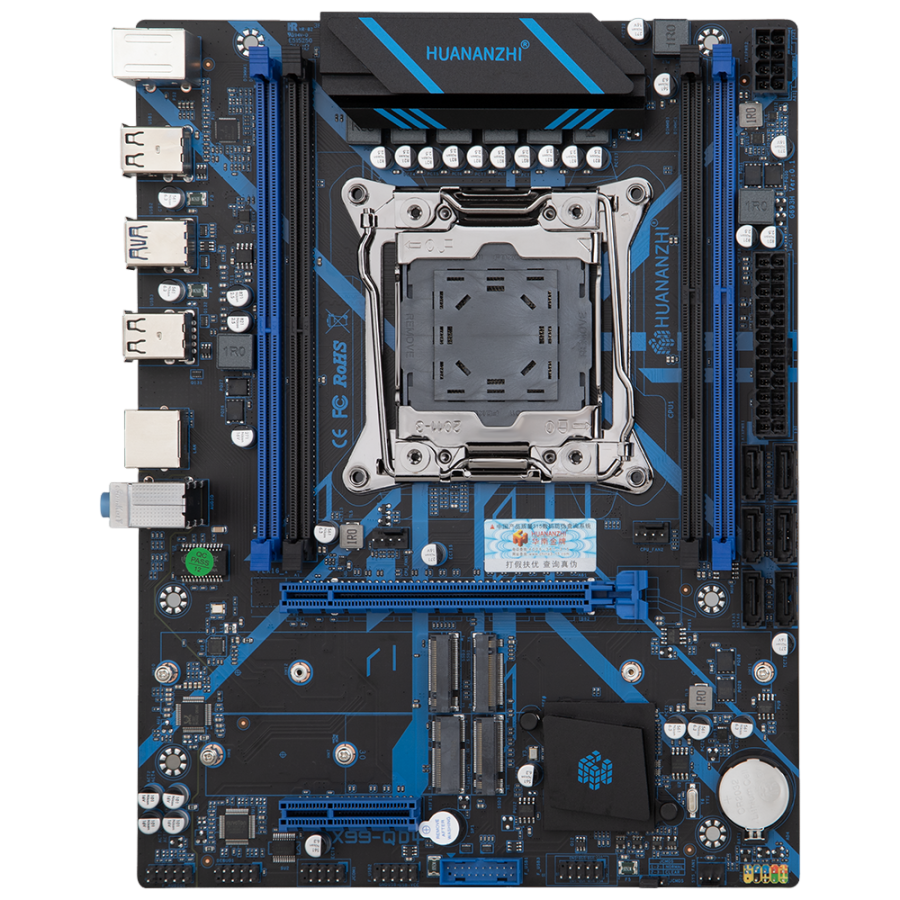

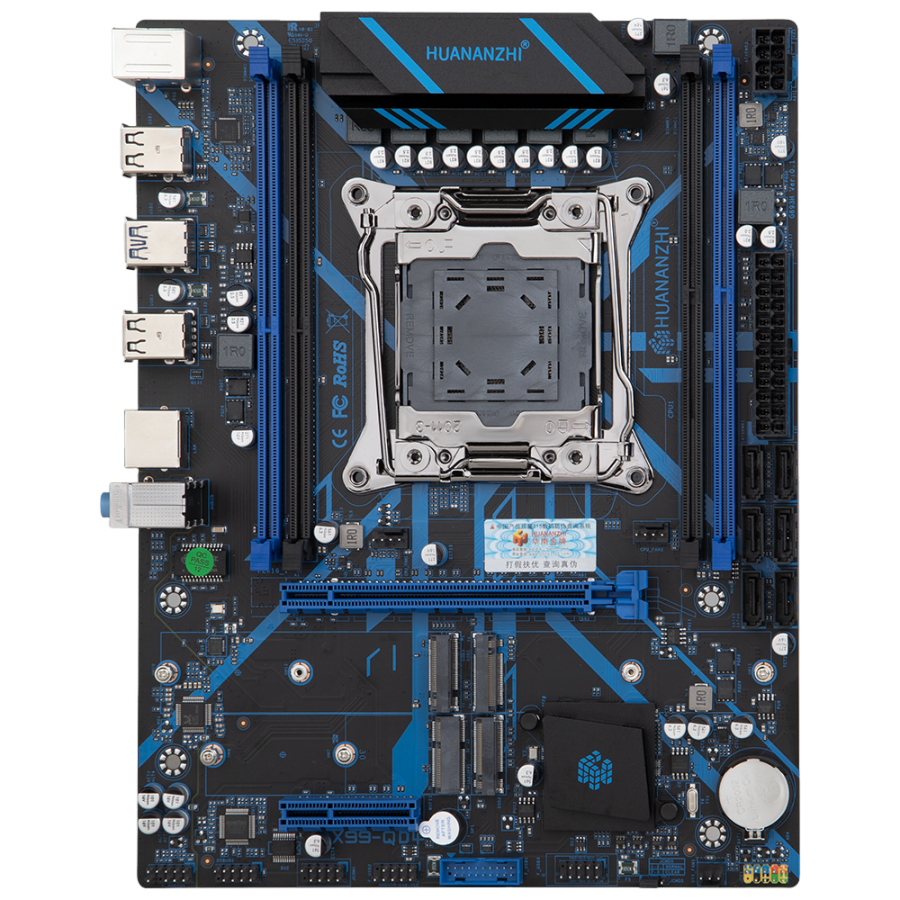

Chipset: Intel Q87/H87/Z87 series
CPU Pin: Supports Intel LGA2011-3 platform processors
Memory Slots: 4 DDR4 memory slots
Memory Standard: Supports DDR4 2400/2133/1866MHz memory (Note: depends on CPU), maximum support 128GB
Storage Interfaces: 6 SATA 3.0 6Gbps hard drive interfaces
Expansion Slots: 1 PCI Express 3.0 x16 slot, 1 PCI Express 2.0 x4 slot
Expansion Interfaces: 3 M.2 2280 NVMe PCIE X4 3.0 slots, 1 M.2 slot WIFI (NGFF protocol)
Onboard Audio Card: Realtek High Faith Audio
Onboard Network Card: Realtek Gigabit Ethernet
Power Interface: 24PIN + 8PIN
Fan Pins: 2 CPU_FAN Pins
Power Phases: 6-phase
PCB Layers: 8 layers
Motherboard Size: 245*190MM M-ATX Form Factor
Rear Panel I/O: 1 PS/2 keyboard/mouse port, 4 USB 2.0 ports, 2 USB 3.0 ports, 1 Ethernet port, 1 3-pin audio jack
Front Panel I/O: 2 USB 2.0 headers, 1 USB 3.0 header, 1 front audio header, 1 COM header, 1 power-on header, 1 COM serial header
1 power-on reset header, 1 debug header
